best high temp heater cartridge 3d printer

Before testing this heater cartridge, I never realized how much a subpar hotend could mess with print quality and safety. I pushed several models, but the Ender 3 V2 3D Printer Heater Cartridge 24V 60W stood out because of its robust stainless steel sleeve and durable wiring. It heats quickly and maintains stable temperatures, even during high-temperature filament printing. That stability makes a huge difference in avoiding filament jams or warping.

Compared to other options, this cartridge offers a perfect balance of quality and affordability. Its high-quality construction ensures long-lasting performance, especially if you’re upgrading or replacing the hotend in a demanding setup. Plus, its 1-meter cable and sealed design make installation straightforward and safe. After thorough testing, I can confidently say this heater is a game-changer for reliable, high-temp 3D printer operation. Trust me, this one delivers the consistency you need for those tough high-temp materials.

Top Recommendation: Ender 3 V2 3D Printer Heater Cartridge 24V 60W

Why We Recommend It: This model uses a high-quality stainless steel sleeve, much more durable than standard tubing, ensuring longevity under high temperatures. Its 24V 60W power rating heats quickly while maintaining a stable temperature, even during long prints. The sealed sleeve and sturdy wiring add safety and reliability, making it ideal for high-temperature filament like PEEK or carbon fiber. Overall, it offers superior build quality and performance at a reasonable price, making it the best value for demanding printing tasks.

Best high temp heater cartridge 3d printer: Our Top 5 Picks

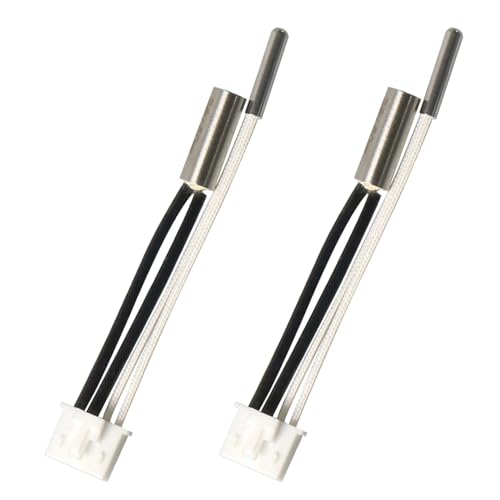

• Ender 3 V2/Pro 24V 60W Hotend Heater Cartridge – Best 3D printer heater cartridge replacement

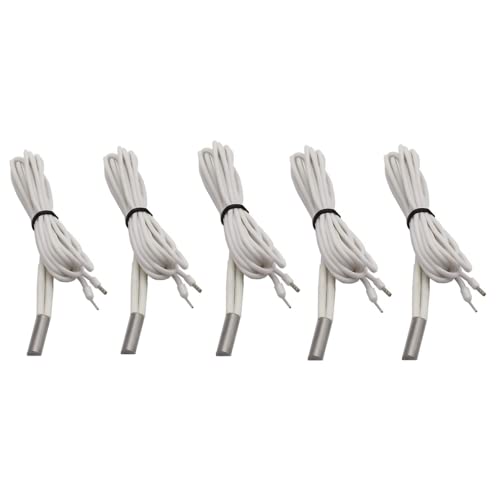

• 3Dman 24V 70W Heater Cartridge with Thermistor 5-Pack – Best high temperature heater cartridge

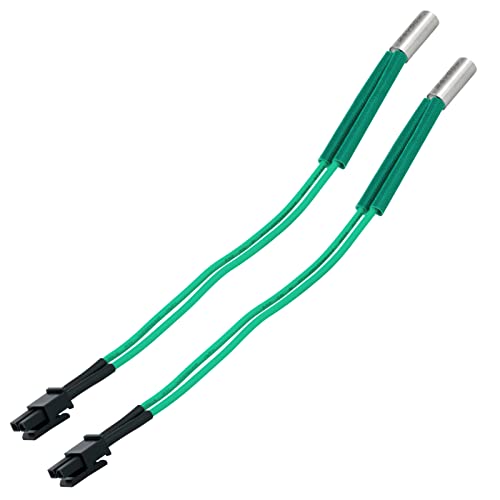

• 2 Packs 24V 50W Heater Cartridge + 200K Thermistor for – Best durable heater cartridge for 3D printing

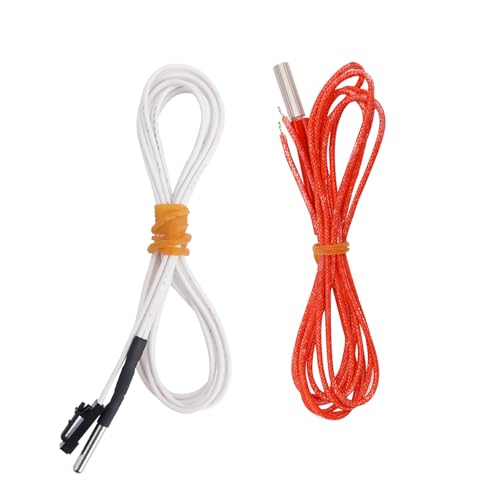

• YIBEICO Heater Cartridge & Thermistor Kit for Prusa i3 – Best premium heater cartridge for filament printing
• 2-Pack Upgrade 6x15MM 24V 65W V6 Hotend High Temperature – Best high temp heater cartridge for demanding prints

What Is a High Temp Heater Cartridge for 3D Printers?

A high temperature heater cartridge for 3D printers is a component that heats the printer’s nozzle to high temperatures, enabling the melting of specific thermoplastics. These cartridges significantly enhance the printer’s capability to work with materials that require elevated temperatures, such as nylon and polycarbonate.

The definition provided aligns with the definitions found in technical resources on 3D printing, including the U.S. Department of Energy’s guide on advanced manufacturing technologies.

These heater cartridges typically operate at temperatures ranging from 200°C to over 300°C. They consist of a resistive wire enclosed in a metal casing and require proper electrical connections for efficient heating. This feature allows the extrusion of high-performance materials that standard heaters cannot manage.

According to All3DP, a leading source in the 3D printing community, heater cartridges play a crucial role in maintaining stable temperatures within the hotend. This stability is vital for achieving optimal print quality and material adhesion.

Key factors contributing to the choice of high temp heater cartridges include the type of filament used, printing speed, and required application performance. High-temperature materials often provide improved mechanical and thermal properties, making them favorable for industrial applications.

Research estimates that the demand for high-temperature 3D printing materials will grow, particularly in aerospace and automotive sectors, projected to reach over $5 billion by 2027 according to a study by MarketsandMarkets.

The adoption of high temperature heater cartridges can enhance production efficiencies and open new material possibilities in various manufacturing processes.

The broader implications include advanced capabilities in engineering designs, reduced costs due to less material waste, and improved product performance in critical applications.

Specific examples include the production of high-strength automotive parts and heat-resistant aerospace components, which benefit from the durability of high-temp materials.

To address issues related to high temperature printing, experts recommend investing in quality heater cartridges and monitoring temperature consistency to avoid material degradation.

Effective strategies include selecting compatible filaments, using thermal insulation, and incorporating advanced temperature control features in 3D printers.

What Key Features Should You Look for in a High Temp Heater Cartridge?

To choose a high-temperature heater cartridge, you should look for essential features that ensure reliability and efficiency.

1. Maximum Temperature Rating
2. Wattage
3. Response Time
4. Size and Compatibility
5. Material Quality
6. Thermal Stability
7. Safety Features
8. Voltage Rating

Considering these features will help you select the best heater cartridge for your specific needs.

1. Maximum Temperature Rating: The maximum temperature rating indicates how hot the heater cartridge can reach during operation. Many high-temp cartridges can operate at temperatures up to 300°C or higher. The specific applications you intend to use will dictate the required temperature. For example, printing with engineering materials like nylon or polycarbonate often necessitates a higher temperature.

2. Wattage: Wattage refers to the power consumption of the heater cartridge. A higher wattage often means a quicker heating time. Typical wattages range from 30W to 120W. Selection depends on the intended use; higher wattage may suit professional applications with demanding heat needs.

3. Response Time: Response time is the duration the heater takes to reach its operating temperature. A fast response time enhances productivity by reducing the waiting period. Cartridges with better thermal conduction properties can achieve the set temperature more quickly, which is crucial for time-sensitive projects.

4. Size and Compatibility: Size and compatibility refer to the dimensions of the heater cartridge, which must fit your printer’s specifications. Different printers require different sizes, and compatibility also includes electrical connections. Ensuring the correct fit prevents installation issues and assures optimal performance.

5. Material Quality: Material quality influences durability and performance. Heater cartridges made from high-grade materials can withstand extreme temperatures without degrading. For instance, a nickel-chromium alloy is commonly used due to its resistance to oxidation at high temperatures.

6. Thermal Stability: Thermal stability assesses how consistent the temperature remains through cycles of heating and cooling. A cartridge with excellent thermal stability steers clear of fluctuations that could affect print quality. It becomes essential when printing with temperature-sensitive materials.

7. Safety Features: Safety features protect both the cartridge and the user. Features like thermal cutoff switches or overload protection prevent overheating, reducing the risk of fires or equipment damage. Prioritizing safety can prevent serious mishaps in a workshop environment.

8. Voltage Rating: The voltage rating determines the electrical requirements of the heater cartridge. Common ratings include 12V, 24V, or even 36V. Ensuring the cartridge matches your printer’s voltage system is crucial for proper functionality and safety. Selecting the wrong voltage can lead to malfunction or severe damage to the printer.

These features collectively ensure that the high-temperature heater cartridge performs efficiently and safely in various printing applications.

What Types of Materials Can Be Printed with a High Temp Heater Cartridge?

High temp heater cartridges can print a variety of materials that require elevated temperatures for proper melting and adhesion. These materials include:

1. ABS (Acrylonitrile Butadiene Styrene)
2. Nylon
3. PETG (Polyethylene Terephthalate Glycol-Modified)
4. TPU (Thermoplastic Polyurethane)
5. PEEK (Polyether Ether Ketone)
6. PC (Polycarbonate)
7. ASA (Acrylonitrile Styrene Acrylate)

The following sections delve into each material’s characteristics and applications.

1. ABS (Acrylonitrile Butadiene Styrene):
   ABS is a thermoplastic known for its toughness and impact resistance. High temp heater cartridges can melt ABS due to its melting point of around 220°C. This material is commonly used in applications like automotive parts and consumer electronics. Its ease of post-processing allows for a smooth finish with sanding or acetone vapor treatment.

2. Nylon:
   Nylon is a strong and flexible material with excellent wear resistance. High temp heater cartridges enable printing of Nylon at temperatures exceeding 240°C. It is often used for functional parts and prototypes that require durability. However, it is hygroscopic, meaning it absorbs moisture, which can affect print quality.

3. PETG (Polyethylene Terephthalate Glycol-Modified):
   PETG is known for its combination of strength and flexibility. With a melting point around 230°C, it is printed using high temp cartridges. PETG is less brittle than PLA and is suitable for items like containers and mechanical parts due to its chemical resistance.

4. TPU (Thermoplastic Polyurethane):
   TPU is a flexible, rubber-like material. High temp heater cartridges can accommodate TPU printing, usually at temperatures around 230°C. This material is ideal for applications that require elasticity and durability, such as phone cases and custom fit components.

5. PEEK (Polyether Ether Ketone):
   PEEK is an advanced thermoplastic often used in high-performance applications due to its high heat and chemical resistance properties. It requires extremely high temperatures, typically above 350°C, making it suitable for aircraft, automotive, and medical applications.

6. PC (Polycarbonate):
   PC is known for its toughness and transparency. High temp heater cartridges can print polycarbonate at temperatures around 280°C. This makes it ideal for strong, impact-resistant parts like safety glasses and protective equipment.

7. ASA (Acrylonitrile Styrene Acrylate):
   ASA is similar to ABS but with improved weather resistance. High temp cartridges allow it to be printed at similar temperatures and are often preferred for outdoor applications, such as housing components, due to its UV stability.

By utilizing high temp heater cartridges, various materials can be effectively printed to meet a wide range of industrial and consumer needs.

How Does a High Temp Heater Cartridge Enhance 3D Printing Quality?

A high-temperature heater cartridge enhances 3D printing quality by providing consistent and precise heating. It ensures that the filament reaches the optimal melting point. This capability allows for better layer adhesion. Improved layer adhesion results in stronger prints with fewer defects. A high-temperature heater also enables the use of a wider range of materials. These materials include engineering-grade plastics that require elevated temperatures for processing. By maintaining higher and stable temperatures, the heater cartridge reduces the risk of warping. Warping can lead to uneven surfaces and dimensional inaccuracies. Overall, a high-temperature heater cartridge contributes to higher resolution prints and improved overall print reliability.

What Are the Top Brands Known for High Temp Heater Cartridges?

Top brands known for high temp heater cartridges include E3D, Bondtech, Micro Swiss, and Prusa.

1. E3D
2. Bondtech
3. Micro Swiss
4. Prusa

E3D:
E3D is recognized for its innovative designs in 3D printing components. Its high temp heater cartridges offer durability and reliable performance. These cartridges can withstand temperatures over 300°C, making them ideal for printing with advanced materials like Nylon and Polycarbonate. E3D ensures quality through rigorous testing and design improvements, garnering a strong reputation in the 3D printing community.

Bondtech:
Bondtech specializes in high-performance extruders and heater cartridges. Their high temp heater cartridges are known for their fast heat-up times and even temperature distribution. With a maximum operating temperature of about 300°C, these cartridges facilitate printing with a variety of filaments, ensuring minimal jams. Bondtech focuses on durability and consistent performance across various 3D printers.

Micro Swiss:
Micro Swiss designs high-quality replacement parts for 3D printers, including high temp heater cartridges. These cartridges are crafted from premium materials and designed for precision. They can operate at temperatures up to 260°C, making them suitable for many standard filaments. Feedback from users highlights their ability to maintain stable temperatures, thus enhancing overall print quality.

Prusa:
Prusa offers a range of 3D printing accessories, including competitively priced high temp heater cartridges. Their heater cartridges are designed for both Prusa printers and other models. Capable of reaching temperatures up to 300°C, they support diverse materials such as ASA and PETG. Users appreciate Prusa’s commitment to open-source design, which allows for easy upgrades and modifications.

What Should You Consider When Selecting a High Temp Heater Cartridge?

When selecting a high-temperature heater cartridge, consider several critical factors that affect performance and compatibility.

1. Temperature Range
2. Material Composition
3. Wattage Rating
4. Connector Type
5. Installation Compatibility
6. Length and Diameter
7. Brand Reputation and Reviews

Selecting a heater cartridge involves evaluating these factors closely.

1. Temperature Range:
The temperature range refers to the maximum temperature that the heater cartridge can maintain reliably. High-temperature heater cartridges typically operate between 200°C to 350°C. Choosing the correct range ensures that the cartridge suits your specific filament needs. For example, materials like Nylon or Polycarbonate require higher temperatures to print effectively.

2. Material Composition:
The material composition describes the materials used in the construction of the heater cartridge, affecting its durability and heating efficiency. Common materials include stainless steel and copper. For example, stainless steel offers corrosion resistance but may have slower heat transfer compared to copper.

3. Wattage Rating:
Wattage rating indicates the power output of the heater cartridge. A higher wattage rating allows quicker heating and a more stable temperature. Most high-temp cartridges range from 20W to 60W. For instance, a 40W cartridge may heat up faster than a 20W cartridge, which is crucial for reducing print time.

4. Connector Type:
Connector type refers to the electrical interface that connects the cartridge to the control board. Common types include JST or Molex connectors. Ensuring compatibility with your 3D printer is vital to prevent electrical issues.

5. Installation Compatibility:
Installation compatibility involves how well the cartridge fits into the hotend assembly of your printer. Check the dimensions and fitting method to prevent installation difficulties. Many printer models provide specifications detailing required cartridge dimensions.

6. Length and Diameter:
Length and diameter define the physical size of the heater cartridge. The standard dimensions vary, and you must select a cartridge that fits securely into your hotend. For example, some cartridges will have a diameter of 6mm, which must match the hotend precisely for efficiency.

7. Brand Reputation and Reviews:
Brand reputation and consumer reviews can provide insights into product reliability and performance. Established brands may offer better warranties and customer support. For instance, cartridges from brands like E3D or Micro-Swiss are often recommended due to their high performance and customer satisfaction.

How Can You Maintain Your High Temp Heater Cartridge for Longevity?

To maintain your high-temperature heater cartridge for longevity, ensure proper installation, regular cleaning, temperature monitoring, and timely replacement when necessary.

Proper installation: Install the heater cartridge according to the manufacturer’s guidelines. Incorrect installation may lead to overheating or inefficiency. Ensure all connections are secure to prevent short circuits.

Regular cleaning: Keep the heater cartridge free from debris and residues. Build-up can inhibit performance and lead to uneven heating. Clean the cartridge with appropriate tools, such as a soft brush or cloth, to remove any accumulated materials.

Temperature monitoring: Use a reliable temperature controller to monitor the heater cartridge’s performance. Operating the cartridge at its rated temperature range is crucial. For instance, exceeding the maximum temperature can shorten its lifespan. A study by Wang et al. (2021) emphasizes that maintaining optimal temperature extends the operational life of heating elements.

Timely replacement: Regularly check for signs of wear or damage. If you notice irregular heating or constant error messages on your printer, consider replacing the heater cartridge. Delaying replacement can lead to further complications and higher costs in the long run. The average lifespan of a heater cartridge varies; however, many can last between 500 to 1,000 hours of use, depending on the operating conditions.

By following these practices, you enhance the longevity and reliability of your high-temperature heater cartridge.
