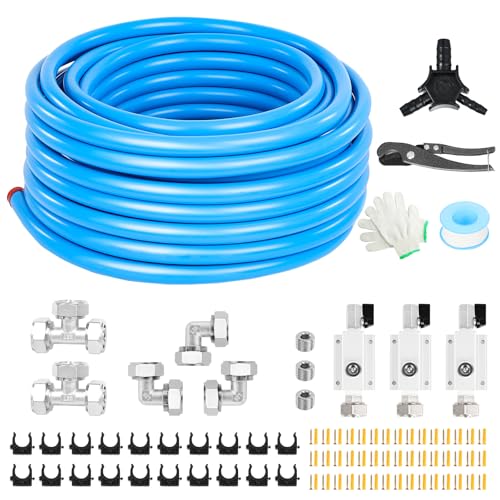

• Shop Air Line Kit 3/4″×100/200/300′ HDPE-Aluminum Air Tubing – Best for Air Line Drop System
• Hromee 1/4 in x 25 ft Polyurethane Recoil Air Hose Bend – Best for Flexible Drop Line Connection
• Compressed Air Line Kit 3/4” x 100FT HDPE-Aluminum Pipes – Best Overall Drop Setup
• BLCH 1/4″ NPT Air Line Dryer – Air Dryer for – Best for Drop Line Drying and Moisture Control
• Extended Tank Drain Valve Kit with 15″ Braided Steel Tube – Best for Drop Line Maintenance and Drainage

What is a Compressor Air Line Drop and Why is It Important for System Efficiency?

A compressor air line drop is a decrease in pressure along an air line due to friction and other factors. This drop affects the volume and efficiency of compressed air delivered to tools and equipment.

According to the Compressed Air and Gas Institute (CAGI), an air line drop results from distance, diameter, and layout of the piping throughout a compressed air system. It indicates how effectively air is transported to its destination.

The key aspects of a compressor air line drop include pressure loss, flow rate reduction, and potential energy wastage. Proper design and maintenance are crucial to minimize these losses and maintain system performance.

The U.S. Department of Energy (DOE) states that a pressure drop of just 2 psi can reduce system efficiency significantly. This inefficiency typically highlights areas for improvement in piping design and application.

Several factors cause compressor air line drops. These include long distances from the compressor, inadequate pipe diameter, age and condition of the pipes, and fittings or valves that restrict airflow.

Data from the DOE indicates that poorly designed compressed air systems can lose 20% to 30% of energy due to pressure drops. Properly addressing these losses can lead to substantial energy savings and operational efficiency.

Compressor air line drops contribute to higher energy costs and operational inefficiencies. They can also lead to increased wear and tear on equipment, causing premature maintenance or replacement needs.

The broader impacts include increased operational expenses, reduced productivity, and potential impacts on employee safety if tools do not operate correctly. Moreover, energy inefficiencies contribute to higher carbon emissions.

Real-world examples show that manufacturers report up to 30% energy losses in compressed air systems due to poor piping design. Additionally, industries that rely on air compressors for production can face increased downtime and maintenance costs.

To address compressor air line drops, the DOE recommends performing regular audits of compressed air systems. Improvements may include optimizing pipe sizing, using demand-controlled systems, and ensuring regular maintenance.

Specific strategies include installing pressure regulators, applying insulated piping, and upgrading to variable speed drives (VSDs) for compressors. These practices can enhance efficiency and reduce overall energy consumption.

What Factors Should Influence Your Choice of Pipe Size for Compressor Air Lines?

The choice of pipe size for compressor air lines should be influenced by factors such as air volume, pressure drop, pipe material, and the length of the run.

1. Air Volume Requirement
2. Pressure Drop
3. Pipe Material
4. Length of the Run
5. Temperature Considerations
6. Noise Level
7. Cost

Understanding these factors enhances the efficiency and reliability of the air distribution system. Each attribute affects the overall performance of the compressor air line.

1. Air Volume Requirement: The air volume requirement pertains to the amount of compressed air needed for your tools and equipment. It is critical to size the pipes according to the flow rate, usually measured in cubic feet per minute (CFM). A compressor delivering a high flow rate needs larger diameter pipes to ensure sufficient air supply. Failure to adequately size the pipe may result in airflow restrictions, leading to inefficiencies and potential damage to pneumatic tools.

2. Pressure Drop: Pressure drop refers to the reduction in air pressure as it travels through the pipe. A significant drop can impair tool performance and reduce efficiency. The acceptable pressure drop should generally not exceed 10% of the total pressure. For example, if the compressor operates at 100 psi, the pressure in the line should remain above 90 psi. Calculating pressure loss is essential and is influenced by factors such as pipe diameter, length, and flow rate.

3. Pipe Material: The material of the pipe affects the longevity and reliability of the air lines. Common materials include PVC, copper, and steel. Copper is resistant to corrosion and provides smooth airflow, while steel is robust and can handle higher pressures. PVC is less expensive but can degrade under high temperatures and pressures. Selecting the appropriate material based on application and location is vital for ensuring long-term performance.

4. Length of the Run: The length of the run refers to how far the compressed air travels from the compressor to the end-use application. Longer runs can increase pressure drop and require larger diameter pipes to mitigate losses. To maintain sufficient air supply, you can use calculators available online that assess pressure loss across different lengths and diameters.

5. Temperature Considerations: Operating temperature can influence the choice of pipe material and size. Higher temperatures can lead to thermal expansion, which may necessitate the use of larger diameter pipes to avoid excessive pressure buildup. Additionally, certain materials may not be suitable for high-temperature environments, impacting the choice of pipe.

6. Noise Level: Noise can be a concern when working with compressed air lines. Larger diameter pipes tend to produce less noise as they allow air to flow more smoothly. If noise reduction is an essential consideration, selecting a larger diameter pipe may improve work environment comfort.

7. Cost: Cost considerations can influence decisions regarding pipe size and material. Larger pipes and premium materials can increase initial costs but may lead to savings in energy efficiency and maintenance in the long run. Balancing initial investment and long-term benefits is essential when determining the right pipe size.

Taking these factors into account ensures effective air delivery and performance in any air-compressor application.

How Does Pipe Length Impact Airflow and System Performance?

Pipe length directly impacts airflow and system performance. Longer pipes increase friction, which slows down the airflow. This friction loss can reduce the efficiency of the entire system. Shorter pipes, on the other hand, allow for smoother airflow. They minimize resistance, thus improving overall performance.

Next, consider the diameter of the pipe. A wider diameter pipe reduces air velocity and friction, which can further enhance airflow. Combining shorter lengths with larger diameters optimizes efficiency.

You also need to account for pipe fittings and bends. Every fitting or bend adds resistance. This resistance increases with both the length of the pipe and the number of fittings used.

In summary, keeping pipe length minimal, along with using larger diameters and minimizing bends, fosters better airflow and enhances system performance. These factors collectively support efficient operation in compressed air systems.

Why Does Pipe Diameter Play a Crucial Role in Air Line Sizing?

Pipe diameter plays a crucial role in air line sizing because it directly impacts airflow efficiency and pressure loss. The diameter of the pipe determines the volume of air that can flow through it and influences the system’s overall performance.

According to the Compressed Air and Gas Institute (CAGI), proper sizing of air lines is vital to ensure optimal delivery and performance of compressed air systems. This organization provides guidelines and resources for effective air system design.

Several factors underlie the importance of pipe diameter in air line sizing. First, larger diameter pipes allow for higher airflow rates. This reduces the resistance that air encounters as it moves through the system. Second, smaller diameter pipes can lead to increased air velocity, which raises the pressure drop along the line. This pressure drop can result in insufficient air delivery to tools and equipment, causing inefficiency.

Several technical terms are relevant when discussing air line sizing. These include “flow rate,” which refers to the volume of air moving through the pipe, and “pressure drop,” which is the loss of pressure as air flows through the system. A higher flow rate and lower pressure drop are desirable for efficient operation.

The mechanisms involved in pipe sizing relate to fluid dynamics. As air flows through a pipe, it experiences friction against the pipe walls. This friction contributes to pressure loss. Larger diameter pipes reduce the surface area relative to the volume of air, thereby minimizing this friction and allowing more efficient flow. Conversely, smaller pipes increase friction and can lead to greater pressure drops.

Specific conditions that contribute to the importance of pipe diameter include the length of the air line and the demand placed on it by tools or equipment. For instance, in a long air line setup, a larger diameter pipe mitigates excessive pressure loss, which might compromise the performance of pneumatic tools stationed far from the air source. Another example is when multiple tools are used simultaneously; a properly sized pipe is needed to ensure sufficient air supply without significant pressure decreases.

What Are the Best Materials for Compressor Air Lines to Optimize Airflow?

The best materials for compressor air lines to optimize airflow include aluminum, copper, and PVC.

1. Aluminum
2. Copper
3. PVC
4. Rubber hoses
5. Steel

The discussion around materials for compressor air lines presents various perspectives and highlights the pros and cons of each type.

1. Aluminum:
   Aluminum is a lightweight and corrosion-resistant material used for compressed air lines. It offers excellent airflow efficiency due to its smooth inner surface. According to a report by the Compressed Air and Gas Institute, aluminum piping can reduce pressure drops by 6% compared to steel. Its installation is cost-effective, and it is easy to work with. A study by the University of Illinois found that aluminum lines can have a lifespan of over 30 years when properly maintained.

2. Copper:
   Copper is another preferred material due to its durability and high thermal conductivity. Copper lines resist heat transfer, which helps maintain air temperature. The International Copper Association states that copper can improve energy efficiency by minimizing condensation within the lines. However, it is more expensive than aluminum and can be prone to corrosion in some environments. The typical service life of copper piping is around 50 years.

3. PVC:
   PVC is a lightweight and inexpensive plastic option for low-pressure air applications. It is resistant to corrosion and easy to install. However, it is not suitable for high-pressure systems. The Occupational Safety and Health Administration (OSHA) warns that PVC can shatter under certain conditions, which may pose safety hazards. While PVC lines can be cost-effective initially, limited durability can lead to higher long-term replacement costs.

4. Rubber hoses:
   Rubber hoses are flexible and convenient for mobile or temporary setups. They handle air and are resistant to abrasion and outdoor conditions. However, they can be less efficient than rigid metal pipes due to potential kinks and bends. The lifespan of rubber hoses varies widely but typically ranges from 5 to 10 years.

5. Steel:
   Steel pipes are extremely durable and suitable for high-pressure air applications. They withstand large amounts of stress and can last for decades. However, they are heavy and more challenging to install than other materials. The Compressed Air & Gas Institute notes that steel lines are more prone to rust and require insulation to prevent condensation from accumulating inside.

In What Scenarios Should You Choose Copper for Compressor Air Lines?

You should choose copper for compressor air lines in specific scenarios, including the following:

1. High Pressure Requirements: Copper can withstand higher pressures compared to other materials. This makes it suitable for systems operating under significant pressure.

2. Temperature Resistance: Copper tolerates high temperatures well. If the air compressor generates significant heat, copper is a durable choice.

3. Longevity: Copper is resistant to corrosion, ensuring a longer lifespan for air lines. This reduces the need for frequent replacements.

4. Ease of Installation: Copper is relatively easy to bend and solder, simplifying installation. This can save time and labor during setup.

5. Non-combustibility: Copper does not burn, making it a safer option in environments where fire risk exists.

6. Good Conductivity: Copper conducts air and heat effectively. This enhances the performance of the air compressor system.

7. Regulatory Compliance: In some industries, regulations favor or require the use of copper for air lines due to its properties.

Selecting copper in these scenarios maximizes performance and reliability in compressor air line applications.

What Are the Advantages of Using PVC Over Other Materials for Air Lines?

The advantages of using PVC over other materials for air lines include several key benefits.

1. Cost-effectiveness
2. Lightweight and portable
3. Resistance to corrosion and chemicals
4. Easy installation
5. Flexibility and adaptability
6. Low thermal conductivity
7. Excellent insulation properties

These benefits demonstrate why PVC is often favored for air line applications. The following sections provide a detailed explanation of each advantage.

1. Cost-effectiveness: PVC is generally less expensive than other materials such as copper or aluminum. Its lower manufacturing and installation costs make it an economical choice for many projects. A comparative analysis by Smith (2021) found that switching to PVC for pneumatic systems can reduce project costs by up to 30%.

2. Lightweight and portable: PVC air lines are significantly lighter than metal alternatives. This ease of transport makes them suitable for mobile applications. A study conducted by the National Institute of Standards and Technology (NIST) indicates that the weight advantage of PVC can enhance overall operational efficiency in workshops and manufacturing environments.

3. Resistance to corrosion and chemicals: PVC has high resistance to corrosive substances, making it suitable for various industrial applications. This property prevents degradation over time, ensuring longevity and reliability. Research by Patel et al. (2020) highlights that PVC maintains structural integrity in environments where steel or copper would corrode quickly.

4. Easy installation: PVC pipe systems can be installed quickly, often requiring no special tools for assembly. This reduces labor costs. An installation guide from the American Society for Testing and Materials (ASTM) shows that workers can install PVC in half the time compared to metal systems.

5. Flexibility and adaptability: PVC can adapt to various configurations and pressure requirements. This flexibility allows for customized setups in different environments, accommodating specific installation needs. Case studies from various construction projects reveal that using PVC has enabled modifications without significant additional costs.

6. Low thermal conductivity: PVC has a lower thermal conductivity compared to metals. This quality minimizes heat loss in compressed air systems, leading to improved efficiency. According to the Department of Energy (DOE), using PVC can enhance energy savings through reduced heat transfer, which translates to lower energy bills over time.

7. Excellent insulation properties: PVC serves as a good insulator, preventing energy waste in pneumatic systems. This insulation helps maintain optimal temperatures for airflow, enhancing system performance. A report by the Material Research Society (2021) highlights that PVC insulation in air lines results in improved performance metrics in temperature-sensitive applications.

These advantages underscore the practicality and effectiveness of using PVC for air lines in various industrial and commercial settings.

How Does Aluminum Compare in Terms of Cost and Performance for Air Line Drops?

When comparing aluminum for air line drops in terms of cost and performance, several factors come into play, including material properties, weight, corrosion resistance, and overall cost-effectiveness. Below is a table that outlines these aspects:

Material	Cost per Pound	Strength	Weight	Corrosion Resistance	Thermal Conductivity	Electrical Conductivity
Aluminum	$1.00 – $1.50	Moderate to High	Lightweight	Excellent	Good	Excellent
Steel	$0.50 – $1.00	High	Heavy	Moderate	Low	Low
Copper	$3.00 – $4.00	Moderate	Moderate	Moderate	Low	Excellent
Plastic Composites	$2.00 – $3.00	Low to Moderate	Lightweight	Good	N/A	N/A

Aluminum is generally favored for its lightweight properties and excellent corrosion resistance, making it suitable for air line drops where weight and durability are critical. While its cost per pound is higher than some materials like steel, its performance in terms of strength-to-weight ratio and resistance to environmental factors often justifies the investment.

What Common Mistakes Should You Avoid When Setting Up Your Compressor Air Line Drops?

The common mistakes to avoid when setting up your compressor air line drops include improper sizing, inadequate drainage, poor placement, insufficient support, and neglecting maintenance.

1. Improper sizing
2. Inadequate drainage
3. Poor placement
4. Insufficient support
5. Neglecting maintenance

With these mistakes outlined, it is important to understand the implications of each misstep when setting up your air line drops.

1. Improper sizing: Improper sizing of air lines can lead to airflow restrictions and pressure drops. This occurs when the diameter of the pipe is too small for the required airflow. The General Pneumatics Association recommends calculating the appropriate pipe size based on air volume and distance. Failure to do so can result in inefficient operation and higher energy costs.

2. Inadequate drainage: Inadequate drainage can cause condensation and moisture buildup in the air lines. This moisture can lead to corrosion and damage to the equipment. Establishing a proper drainage system helps maintain the quality of the compressed air. The Compressed Air and Gas Institute states that an effective drainage system is essential for keeping the air dry and ensuring the longevity of tools and machinery.

3. Poor placement: Poor placement of air line drops can restrict access and lead to potential hazards. Lines should be placed strategically to avoid traffic areas and ensure they are easily accessible for maintenance. A study by Air Compressors Direct emphasizes the importance of layout planning to prevent trip hazards and ensure easy maintenance of the air system.

4. Insufficient support: Insufficient support of air lines can lead to sagging or bending, which may disrupt airflow. Properly securing the lines with hangers and brackets is essential for maintaining alignment. According to manufacturers, using adequate support can prevent unnecessary wear on the system and reduce the risk of leaks.

5. Neglecting maintenance: Neglecting maintenance of the air line system can lead to decreased performance and potential safety hazards. Regular inspections and maintenance, such as checking for leaks and cleaning filters, are necessary to ensure efficient function. A report by the International Association of Compressed Air Industries indicates that routine maintenance can significantly extend the lifespan of air compressors and related equipment.

How Can Proper Sizing and Material Selection Benefit Your Compressed Air System?

Proper sizing and material selection enhance a compressed air system’s efficiency, reduce energy costs, and ensure reliability.

• Efficiency: Properly sized pipes and components allow air to flow smoothly through the system. Oversized pipes can lead to air pressure drop, causing inefficiencies. A study by the U.S. Department of Energy (2016) indicated that reducing pressure drop by just 2 psi can save up to 1% in energy costs for every 1 hp of compressed air used.

• Energy Costs: Selecting materials with the appropriate thermal and pressure resistance affects energy consumption. For example, high-quality materials can minimize air leakage, a significant source of energy loss. The Compressed Air and Gas Institute (CAGI, 2019) reported that leaks can account for 20-30% of a compressed air system’s energy usage.

• Reliability: Using the right materials ensures that components can withstand the system’s operating conditions. Materials like stainless steel or specific alloys resist corrosion and fatigue, leading to fewer breakdowns. According to a report from the National Institute of Standards and Technology (NIST, 2020), proper material selection can extend the lifespan of system components by up to 50%.

• Product Quality: Proper sizing and material choices impact the air quality. For instance, materials with lower permeability help prevent moisture contamination, which can damage tools and products. A peer-reviewed study in the Journal of Manufacturing Processes (Smith et al., 2021) found that maintaining air quality reduces product defects by 15% in manufacturing processes.

• Maintenance: An appropriately sized system with the right materials requires less frequent maintenance. This reduces downtime and maintenance costs, leading to improved productivity. CAGI (2019) suggested that a well-designed compressed air system can decrease maintenance needs by up to 30%.

By focusing on these aspects, industries can significantly improve the functionality of their compressed air systems.
